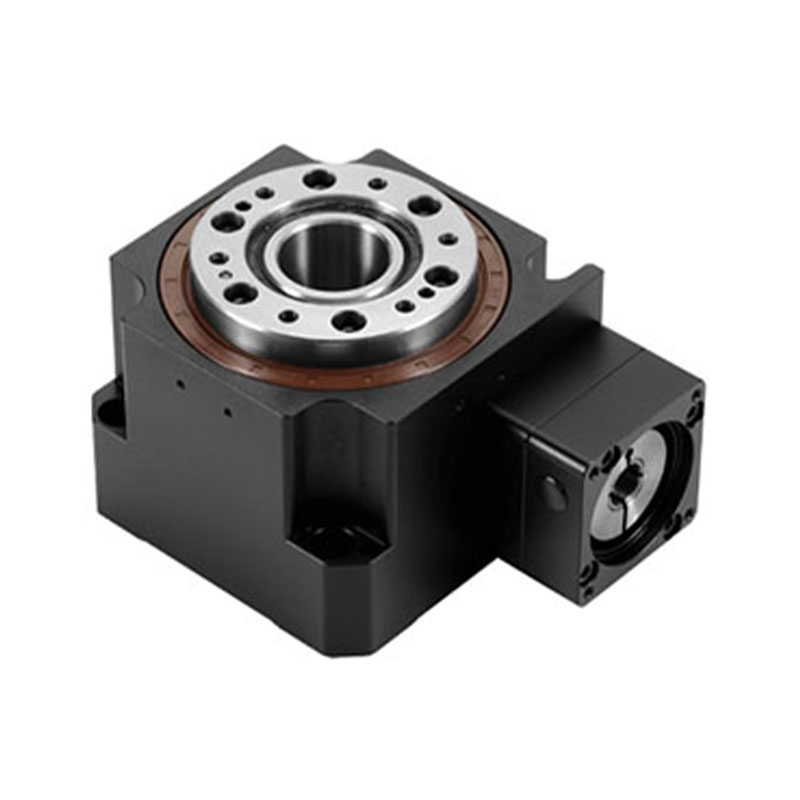

120W Size Harmonic Drive Hollow Rotary Platform Gearbox
Product Model: ZCH120
Bearing Structure: Crossed Roller Bearing
Reduction Ratio: 30
Positioning Accuracy: ≤1 arc-min
Send Inquiry
Product Description
Against the backdrop of the surging wave of industrial automation, equipment imposes increasingly stringent performance requirements on transmission components, with high precision, high stability and strong load-bearing capacity emerging as key indicators. The 120W Size Harmonic Drive Hollow Rotary Platform Gearbox stands out with its outstanding design and excellent performance, providing reliable transmission solutions for various automated equipment and serving as an important driving force for the development of industrial automation.
A prominent advantage of the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox is its large speed ratio characteristic. In industrial production, numerous application scenarios require equipment to operate at low speed while having extremely high demands on the smoothness and accuracy of transmission. Traditional gearboxes often suffer from severe vibration and large return clearance when running at low speed, which not only impairs the positioning accuracy of equipment but also reduces production efficiency and product quality.
The 120W Size Harmonic Drive Hollow Rotary Platform Gearbox has successfully overcome this problem through its elaborately designed large speed ratio reduction mechanism. Take the joint movement of robots as an example: when a robot performs delicate operations, its joints need to rotate slowly at an extremely low speed while ensuring precise and error-free movements. Relying on its large speed ratio, the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox keeps the joints stable during low-speed rotation, effectively reduces vibration and controls the return clearance to an extremely small range, thus ensuring that the robot can accurately reach the designated position and complete complex operational tasks. In the feed system of CNC machine tools, the large speed ratio characteristic of this gearbox also ensures that the cutting tool moves with a precise trajectory during low-speed feeding, producing parts with high dimensional accuracy and excellent surface quality.
The 120W Size Harmonic Drive Hollow Rotary Platform Gearbox adopts a unique output crossed roller bearing design, an innovative design that has brought revolutionary changes to the system integration of equipment. In traditional transmission systems, additional support structures such as support frames and guide rails are usually required to be installed under or around the rotary platform to bear the load. These extra components not only increase the complexity and cost of the equipment but also occupy a lot of space, limiting the compactness and flexibility of the equipment.
The output crossed roller bearing design of the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox allows users to directly mount the load on the rotary platform without adding any additional support structures. In the shelf rotation device of an automated storage system, goods need to be directly placed on the rotary platform for storage and handling. After using this gearbox, goods can be directly and firmly installed on the rotary platform, eliminating the need to design special support devices for goods and greatly simplifying the design and installation process of the equipment. At the same time, the reduction of unnecessary support components significantly improves the space utilization rate of the equipment, enabling the storage system to store more goods in a limited space and enhancing storage efficiency. In the wafer transfer system of semiconductor manufacturing equipment, the innovative output design of this gearbox also ensures the stability and safety of wafers during transfer, reducing interference and risks caused by additional support structures.
The 120W Size Harmonic Drive Hollow Rotary Platform Gearbox is supported by a high-rigidity crossed roller bearing, a design that endows it with strong radial and axial load-bearing capacity, allowing it to easily cope with high-precision, high-torque and heavy-load working conditions. In many industrial applications, equipment needs to bear enormous loads and torques, such as the yaw system of large wind power generation equipment and the rotary platform of mining machinery. If the load-bearing capacity of transmission components is insufficient, problems such as deformation and damage are prone to occur during operation, leading to equipment failures and affecting production schedules.
The high-rigidity crossed roller bearing support structure of the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox can effectively disperse loads and enhance structural stability. In the yaw system of large wind power generation equipment, it is necessary to bear the huge torque generated by the wind on the blades, while also ensuring the precise rotation of the yaw system to adjust the blade angle and achieve optimal wind energy capture. Relying on its high-rigidity support, this gearbox provides stable and reliable transmission for the yaw system, ensuring that the yaw system can still work normally under the action of strong winds without shaking or deformation, thus guaranteeing the power generation efficiency and safety of wind power generation equipment. In the rotary platform of mining machinery, which needs to frequently carry and handle heavy objects such as ores, the high-rigidity support of this gearbox can withstand these heavy loads, ensuring the long-term stable operation of the rotary platform and improving the efficiency of mining operations.
The 120W Size Harmonic Drive Hollow Rotary Platform Gearbox is designed with a large central bore, a clever design that brings great convenience to users in terms of equipment wiring and motor adaptation. In modern automated equipment, the rational layout of pneumatic and hydraulic pipelines and signal cables is crucial, which is not only related to the beauty and neatness of the equipment but also affects its normal operation and reliability.
The large central bore design of the gearbox allows pneumatic and hydraulic pipelines and signal cables to be conveniently run through it. In the assembly station of an automated production line, it is necessary to provide air or hydraulic power for assembly tools and transmit various control signals at the same time. After using the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox , pneumatic and hydraulic pipelines and signal cables can be directly connected to the assembly tools on the rotary platform through the large central bore, avoiding the entanglement and interference of pipelines and cables outside the equipment, making the equipment wiring more concise and reasonable, and improving the reliability and stability of the equipment.
In addition, the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox has good compatibility and can be perfectly matched with mainstream servo motors. Servo motors are characterized by high precision and fast response speed, and the gearbox can convert the high-speed rotation of servo motors into low-speed and high-torque output while maintaining high-precision transmission. In multi-station turntables, matching with servo motors can realize fast and precise rotation and positioning of the turntable to meet the processing requirements of different stations; in visual inspection equipment, it can provide stable power support for the rotation of cameras to ensure the accuracy and efficiency of inspection; in precision assembly equipment, it can precisely control the movement of assembly tools to achieve high-quality assembly operations.
With numerous advantages such as a large speed ratio, innovative output design, high-rigidity support, large central bore design and good motor compatibility, the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox has become an ideal transmission component in the field of industrial automation. It can not only meet the needs of high-precision, high-torque and heavy-load working conditions but also improve the system integration and space utilization rate of equipment, optimize wiring, and provide strong power support for promoting the development and application of industrial automation equipment. With the continuous in-depth development of industrial automation, the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox will surely play a more important role and help various industries achieve a higher level of automated production.
A prominent advantage of the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox is its large speed ratio characteristic. In industrial production, numerous application scenarios require equipment to operate at low speed while having extremely high demands on the smoothness and accuracy of transmission. Traditional gearboxes often suffer from severe vibration and large return clearance when running at low speed, which not only impairs the positioning accuracy of equipment but also reduces production efficiency and product quality.
The 120W Size Harmonic Drive Hollow Rotary Platform Gearbox adopts a unique output crossed roller bearing design, an innovative design that has brought revolutionary changes to the system integration of equipment. In traditional transmission systems, additional support structures such as support frames and guide rails are usually required to be installed under or around the rotary platform to bear the load. These extra components not only increase the complexity and cost of the equipment but also occupy a lot of space, limiting the compactness and flexibility of the equipment.
The 120W Size Harmonic Drive Hollow Rotary Platform Gearbox is supported by a high-rigidity crossed roller bearing, a design that endows it with strong radial and axial load-bearing capacity, allowing it to easily cope with high-precision, high-torque and heavy-load working conditions. In many industrial applications, equipment needs to bear enormous loads and torques, such as the yaw system of large wind power generation equipment and the rotary platform of mining machinery. If the load-bearing capacity of transmission components is insufficient, problems such as deformation and damage are prone to occur during operation, leading to equipment failures and affecting production schedules.
The high-rigidity crossed roller bearing support structure of the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox can effectively disperse loads and enhance structural stability. In the yaw system of large wind power generation equipment, it is necessary to bear the huge torque generated by the wind on the blades, while also ensuring the precise rotation of the yaw system to adjust the blade angle and achieve optimal wind energy capture. Relying on its high-rigidity support, this gearbox provides stable and reliable transmission for the yaw system, ensuring that the yaw system can still work normally under the action of strong winds without shaking or deformation, thus guaranteeing the power generation efficiency and safety of wind power generation equipment. In the rotary platform of mining machinery, which needs to frequently carry and handle heavy objects such as ores, the high-rigidity support of this gearbox can withstand these heavy loads, ensuring the long-term stable operation of the rotary platform and improving the efficiency of mining operations.
The 120W Size Harmonic Drive Hollow Rotary Platform Gearbox is designed with a large central bore, a clever design that brings great convenience to users in terms of equipment wiring and motor adaptation. In modern automated equipment, the rational layout of pneumatic and hydraulic pipelines and signal cables is crucial, which is not only related to the beauty and neatness of the equipment but also affects its normal operation and reliability.
The large central bore design of the gearbox allows pneumatic and hydraulic pipelines and signal cables to be conveniently run through it. In the assembly station of an automated production line, it is necessary to provide air or hydraulic power for assembly tools and transmit various control signals at the same time. After using the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox , pneumatic and hydraulic pipelines and signal cables can be directly connected to the assembly tools on the rotary platform through the large central bore, avoiding the entanglement and interference of pipelines and cables outside the equipment, making the equipment wiring more concise and reasonable, and improving the reliability and stability of the equipment.
In addition, the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox has good compatibility and can be perfectly matched with mainstream servo motors. Servo motors are characterized by high precision and fast response speed, and the gearbox can convert the high-speed rotation of servo motors into low-speed and high-torque output while maintaining high-precision transmission. In multi-station turntables, matching with servo motors can realize fast and precise rotation and positioning of the turntable to meet the processing requirements of different stations; in visual inspection equipment, it can provide stable power support for the rotation of cameras to ensure the accuracy and efficiency of inspection; in precision assembly equipment, it can precisely control the movement of assembly tools to achieve high-quality assembly operations.
With numerous advantages such as a large speed ratio, innovative output design, high-rigidity support, large central bore design and good motor compatibility, the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox has become an ideal transmission component in the field of industrial automation. It can not only meet the needs of high-precision, high-torque and heavy-load working conditions but also improve the system integration and space utilization rate of equipment, optimize wiring, and provide strong power support for promoting the development and application of industrial automation equipment. With the continuous in-depth development of industrial automation, the 120W Size Harmonic Drive Hollow Rotary Platform Gearbox will surely play a more important role and help various industries achieve a higher level of automated production.

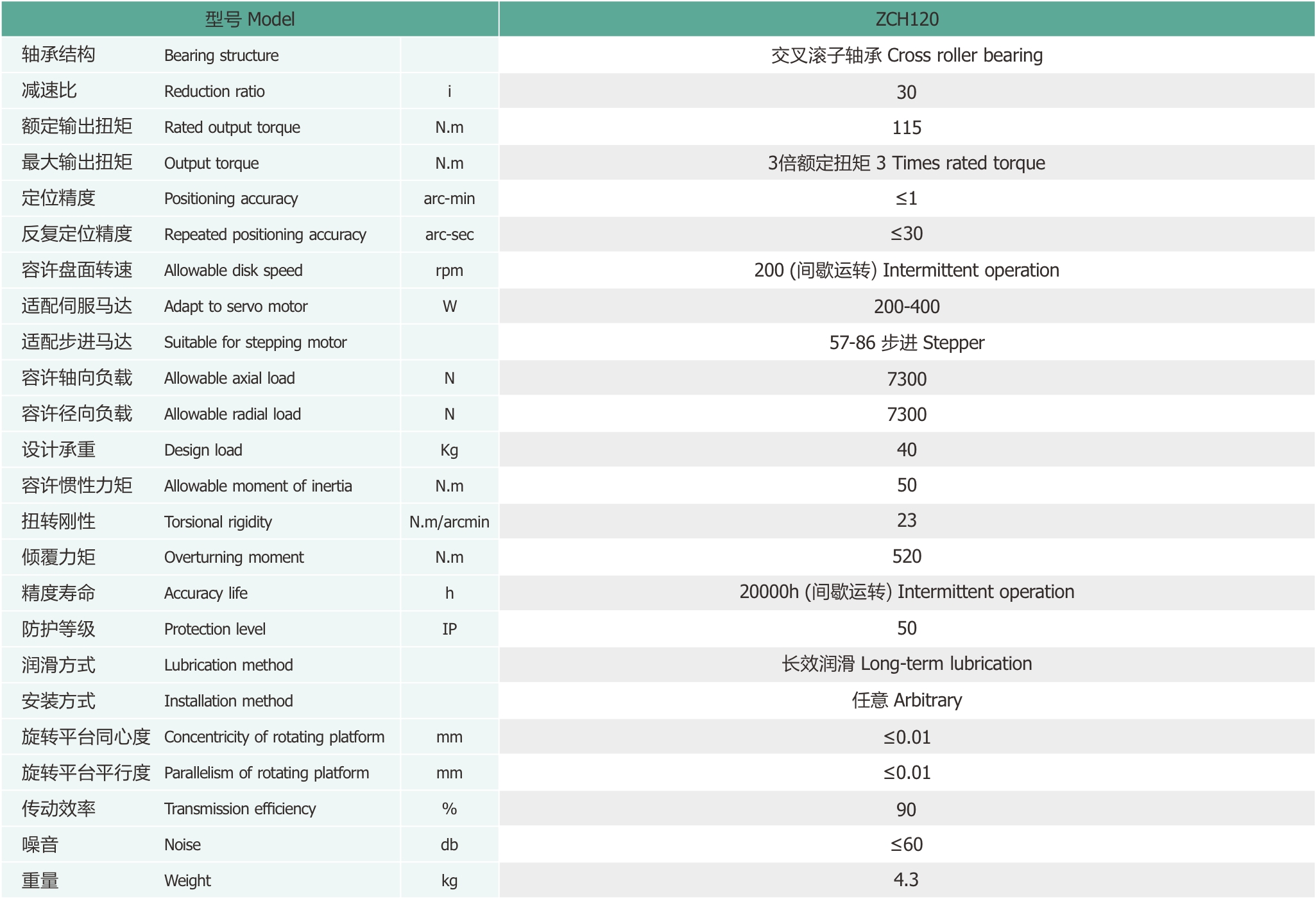

Product Parameter
