Precision Planetary Reducer
>
Industrial-Grade High-Precision Disc-Type Planetary Gear Reducer
>
High Torque Disc Planetary Reducer
Products
- Hollow Rotating Platform
-
Precision Planetary Reducer
- Servo High-Precision Helical Planetary Gear Reducer
- Servo-Matched Precision Right-Angle Planetary Gear Reducer
- High-Precision Servo-Compatible Planetary Gear Reducer
- High-Precision Customized Planetary Gear Reducer
- Industrial-Grade High-Precision Disc-Type Planetary Gear Reducer
- Universal High-Precision Planetary Gear Reducer
- Angle Box Gear Reducer
- Planetary Gear Reducer Dedicated To Automation Equipment
- Economic Planetary Reducer
New Products
Product Description

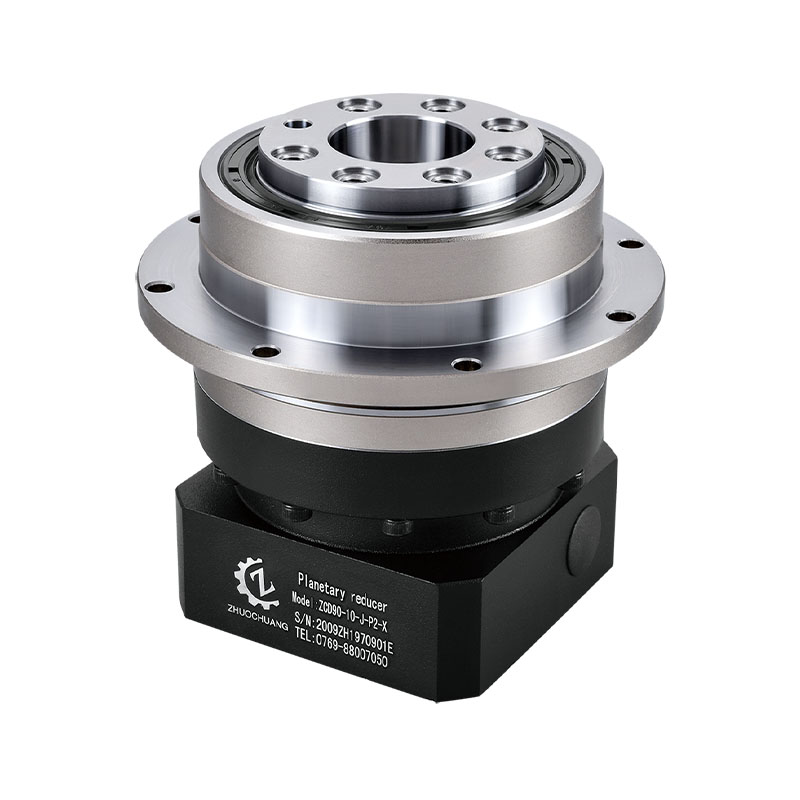

As industrial automation continues to advance toward higher precision, efficiency, and load capacity, the performance requirements for transmission equipment have become increasingly stringent. The ZCD Disc-Type Helical Precision Planetary Reducer stands out with its unique advantages, and among them, the High Torque Disc Planetary Reducer has become the core driving force for high-speed rotating working conditions in numerous industrial scenarios, thanks to its powerful torque output capability, providing a solid guarantee for the efficient and stable operation of industrial production.
The most notable feature of the High Torque Disc Planetary Reducer is its ultra-large output torque and strong load-bearing capacity. In industrial production, many rotating stations need to withstand enormous loads, such as rotating molds of large metal stamping equipment and rotating components of large crushers in mining machinery. The High Torque Disc Planetary Reducer can easily cope with these high-load working conditions and provide a steady stream of powerful power for the equipment.
Taking large metal stamping equipment as an example, during the stamping process, the mold needs to withstand huge impact forces and pressures while performing high-speed rotational motion. If the torque output of the reducer is insufficient, the mold may experience jamming, jitter, and other phenomena during rotation, seriously affecting stamping quality and production efficiency. With its powerful torque output capability, the High Torque Disc Planetary Reducer can ensure the stable operation of the mold during high-speed rotation. Even in the face of high-intensity stamping operations, it can guarantee the precision and quality of stamping parts. In mining machinery, the rotating components of large crushers need to crush hard ores, placing extremely high requirements on the torque and load-bearing capacity of the reducer. The High Torque Disc Planetary Reducer can withstand the huge reaction forces generated during the crushing process, providing reliable power support for the rotation of the crusher and ensuring the smooth progress of crushing operations.
The High Torque Disc Planetary Reducer adopts a disc-type structural design, an innovative design that brings great convenience to the installation and use of equipment. The disc-type structure enables the reducer to output through a disc surface, which can be directly connected to high-speed rotating components in working conditions without complex intermediate transmission devices. In scenarios such as automated production lines and precision processing equipment, the installation space of equipment is often limited, imposing high requirements on the installation precision and space utilization of each component. The disc-type structure of the High Torque Disc Planetary Reducer can be directly connected to workbenches or fixtures through bolts, reducing intermediate transmission links.
For example, on automated assembly production lines, rotating worktables need to be equipped with High Torque Disc Planetary Reducer s to achieve precise rotational motion, accurately transporting components to assembly stations. Traditional reducer installation methods may require additional connecting brackets and transmission shafts, which not only increase installation difficulty and space occupation but also may introduce additional vibration and errors. In contrast, the High Torque Disc Planetary Reducer is directly connected to the worktable through the disc surface, making the installation process simple and fast, and greatly shortening the equipment installation and commissioning time. At the same time, this direct connection method avoids vibrations and errors that may be generated by intermediate transmission components, effectively improving system rigidity. The enhanced system rigidity prevents the reducer from deforming easily when subjected to large external forces, thereby ensuring transmission precision, providing reliable guarantee for precision assembly, and improving assembly quality and production efficiency.
The High Torque Disc Planetary Reducer adopts a helical planetary transmission scheme, which is the key to its stable and low-noise operation. In traditional spur planetary transmission, gears make instantaneous contact and separation during meshing, generating large impact forces and noise, and also affecting the service life and transmission efficiency of the gears. In contrast, the helical gear transmission of the High Torque Disc Planetary Reducer is different: the tooth surfaces of helical gears gradually enter and exit meshing. This gradual meshing method makes the gears subject to more uniform forces during transmission, reducing impact and vibration.
On automated packaging production lines in the food processing industry, the High Torque Disc Planetary Reducer provides power for the rotating components of packaging machinery. Since food processing has high requirements for the production environment, low-noise and stable operation is crucial. The helical gear transmission of the High Torque Disc Planetary Reducer can effectively reduce noise during operation, creating a quiet and comfortable working environment for operators. At the same time, stable operation also reduces equipment vibration, avoiding damage to food packaging caused by vibration, and improving packaging quality and production efficiency. Professional tests have shown that the noise of the High Torque Disc Planetary Reducer during operation is significantly lower than that of traditional spur planetary reducers, providing strong support for the stable operation of food processing production lines. For example, during the filling of liquid food, the low-noise and stable-running reducer can ensure the accurate operation of filling equipment, avoiding problems such as liquid overflow or inaccurate filling volume caused by vibration, and safeguarding food quality and safety.
The High Torque Disc Planetary Reducer ensures stable repeat positioning accuracy through precision ground gears combined with preload adjustment technology, with backlash controlled within ≤4 arcmin. During the gear manufacturing process, the precision grinding process can finely process the tooth surfaces of the gears, removing tiny flaws and burrs on the surface to make the tooth surfaces smoother and flatter. Smooth tooth surfaces can reduce friction during gear meshing, reduce wear, and thereby improve the service life and transmission efficiency of the gears.
Preload adjustment technology is used to precisely control the meshing clearance of the gears. A smaller backlash means that when switching between forward and reverse rotation, the positional deviation of the output end is smaller, and the repeat positioning accuracy is higher. In equipment with extremely high precision requirements such as robot joints and CNC machine tools, the high-precision positioning capability of the High Torque Disc Planetary Reducer can ensure the accurate movement of the equipment. For example, at the joints of industrial robots, the High Torque Disc Planetary Reducer provides precise power support for the movement of the robot, enabling the robot to complete various complex actions such as grasping, handling, and assembly. Its low backlash characteristic ensures the consistency of position accuracy when the robot repeatedly performs the same action, improving the working stability and reliability of the robot. On the rotating shafts of CNC machine tools, the High Torque Disc Planetary Reducer can ensure the precise position of the tool during processing, achieving high-precision processing and meeting the product quality requirements of high-end manufacturing. For instance, in the processing of aerospace components, high-precision processing can ensure the dimensional accuracy and performance of the components, and the High Torque Disc Planetary Reducer provides important support for the development of the aerospace manufacturing industry.
The High Torque Disc Planetary Reducer has a wide adaptability and can perfectly match mainstream servo motors. Servo motors are characterized by high precision and high response speed, and the High Torque Disc Planetary Reducer can reduce the speed and increase the torque of their high-speed rotating power while maintaining high-precision transmission. This adaptability enables the High Torque Disc Planetary Reducer to be widely used in multiple fields such as multi-station turntables, visual alignment systems, and precision assembly equipment.
In multi-station turntables, the High Torque Disc Planetary Reducer , combined with servo motors, can realize high-speed and high-precision intermittent or continuous rotary motion of the turntable. Different stations can accurately reach designated positions during the rotation of the turntable to complete corresponding processing tasks, greatly improving production efficiency. In visual alignment systems, the High Torque Disc Planetary Reducer provides precise power support for the rotation and positioning of cameras, enabling cameras to quickly and accurately capture image information of target objects and provide reliable data for subsequent quality inspection and processing adjustments. In precision assembly equipment, the combination of the High Torque Disc Planetary Reducer and servo motors can realize precise grasping, handling, and assembly of components, ensuring the accuracy and stability of the assembly process. For example, in the precision assembly of electronic products, the High Torque Disc Planetary Reducer can precisely control the position and movement of assembly tools, assembling tiny electronic components accurately and improving the quality and production efficiency of electronic products.
With its ultra-large output torque, innovative disc-type structure, stable helical gear transmission, precise process guarantee, and wide adaptability, the High Torque Disc Planetary Reducer has become a leader in the industrial transmission field. Whether in high-load industrial production scenarios or automated equipment with extremely high precision requirements, the High Torque Disc Planetary Reducer can exert its outstanding performance and contribute powerful momentum to promoting the high-quality development of industrial manufacturing.
The most notable feature of the High Torque Disc Planetary Reducer is its ultra-large output torque and strong load-bearing capacity. In industrial production, many rotating stations need to withstand enormous loads, such as rotating molds of large metal stamping equipment and rotating components of large crushers in mining machinery. The High Torque Disc Planetary Reducer can easily cope with these high-load working conditions and provide a steady stream of powerful power for the equipment.
The High Torque Disc Planetary Reducer adopts a disc-type structural design, an innovative design that brings great convenience to the installation and use of equipment. The disc-type structure enables the reducer to output through a disc surface, which can be directly connected to high-speed rotating components in working conditions without complex intermediate transmission devices. In scenarios such as automated production lines and precision processing equipment, the installation space of equipment is often limited, imposing high requirements on the installation precision and space utilization of each component. The disc-type structure of the High Torque Disc Planetary Reducer can be directly connected to workbenches or fixtures through bolts, reducing intermediate transmission links.
For example, on automated assembly production lines, rotating worktables need to be equipped with High Torque Disc Planetary Reducer s to achieve precise rotational motion, accurately transporting components to assembly stations. Traditional reducer installation methods may require additional connecting brackets and transmission shafts, which not only increase installation difficulty and space occupation but also may introduce additional vibration and errors. In contrast, the High Torque Disc Planetary Reducer is directly connected to the worktable through the disc surface, making the installation process simple and fast, and greatly shortening the equipment installation and commissioning time. At the same time, this direct connection method avoids vibrations and errors that may be generated by intermediate transmission components, effectively improving system rigidity. The enhanced system rigidity prevents the reducer from deforming easily when subjected to large external forces, thereby ensuring transmission precision, providing reliable guarantee for precision assembly, and improving assembly quality and production efficiency.
The High Torque Disc Planetary Reducer adopts a helical planetary transmission scheme, which is the key to its stable and low-noise operation. In traditional spur planetary transmission, gears make instantaneous contact and separation during meshing, generating large impact forces and noise, and also affecting the service life and transmission efficiency of the gears. In contrast, the helical gear transmission of the High Torque Disc Planetary Reducer is different: the tooth surfaces of helical gears gradually enter and exit meshing. This gradual meshing method makes the gears subject to more uniform forces during transmission, reducing impact and vibration.
On automated packaging production lines in the food processing industry, the High Torque Disc Planetary Reducer provides power for the rotating components of packaging machinery. Since food processing has high requirements for the production environment, low-noise and stable operation is crucial. The helical gear transmission of the High Torque Disc Planetary Reducer can effectively reduce noise during operation, creating a quiet and comfortable working environment for operators. At the same time, stable operation also reduces equipment vibration, avoiding damage to food packaging caused by vibration, and improving packaging quality and production efficiency. Professional tests have shown that the noise of the High Torque Disc Planetary Reducer during operation is significantly lower than that of traditional spur planetary reducers, providing strong support for the stable operation of food processing production lines. For example, during the filling of liquid food, the low-noise and stable-running reducer can ensure the accurate operation of filling equipment, avoiding problems such as liquid overflow or inaccurate filling volume caused by vibration, and safeguarding food quality and safety.
The High Torque Disc Planetary Reducer ensures stable repeat positioning accuracy through precision ground gears combined with preload adjustment technology, with backlash controlled within ≤4 arcmin. During the gear manufacturing process, the precision grinding process can finely process the tooth surfaces of the gears, removing tiny flaws and burrs on the surface to make the tooth surfaces smoother and flatter. Smooth tooth surfaces can reduce friction during gear meshing, reduce wear, and thereby improve the service life and transmission efficiency of the gears.
Preload adjustment technology is used to precisely control the meshing clearance of the gears. A smaller backlash means that when switching between forward and reverse rotation, the positional deviation of the output end is smaller, and the repeat positioning accuracy is higher. In equipment with extremely high precision requirements such as robot joints and CNC machine tools, the high-precision positioning capability of the High Torque Disc Planetary Reducer can ensure the accurate movement of the equipment. For example, at the joints of industrial robots, the High Torque Disc Planetary Reducer provides precise power support for the movement of the robot, enabling the robot to complete various complex actions such as grasping, handling, and assembly. Its low backlash characteristic ensures the consistency of position accuracy when the robot repeatedly performs the same action, improving the working stability and reliability of the robot. On the rotating shafts of CNC machine tools, the High Torque Disc Planetary Reducer can ensure the precise position of the tool during processing, achieving high-precision processing and meeting the product quality requirements of high-end manufacturing. For instance, in the processing of aerospace components, high-precision processing can ensure the dimensional accuracy and performance of the components, and the High Torque Disc Planetary Reducer provides important support for the development of the aerospace manufacturing industry.
The High Torque Disc Planetary Reducer has a wide adaptability and can perfectly match mainstream servo motors. Servo motors are characterized by high precision and high response speed, and the High Torque Disc Planetary Reducer can reduce the speed and increase the torque of their high-speed rotating power while maintaining high-precision transmission. This adaptability enables the High Torque Disc Planetary Reducer to be widely used in multiple fields such as multi-station turntables, visual alignment systems, and precision assembly equipment.
In multi-station turntables, the High Torque Disc Planetary Reducer , combined with servo motors, can realize high-speed and high-precision intermittent or continuous rotary motion of the turntable. Different stations can accurately reach designated positions during the rotation of the turntable to complete corresponding processing tasks, greatly improving production efficiency. In visual alignment systems, the High Torque Disc Planetary Reducer provides precise power support for the rotation and positioning of cameras, enabling cameras to quickly and accurately capture image information of target objects and provide reliable data for subsequent quality inspection and processing adjustments. In precision assembly equipment, the combination of the High Torque Disc Planetary Reducer and servo motors can realize precise grasping, handling, and assembly of components, ensuring the accuracy and stability of the assembly process. For example, in the precision assembly of electronic products, the High Torque Disc Planetary Reducer can precisely control the position and movement of assembly tools, assembling tiny electronic components accurately and improving the quality and production efficiency of electronic products.
With its ultra-large output torque, innovative disc-type structure, stable helical gear transmission, precise process guarantee, and wide adaptability, the High Torque Disc Planetary Reducer has become a leader in the industrial transmission field. Whether in high-load industrial production scenarios or automated equipment with extremely high precision requirements, the High Torque Disc Planetary Reducer can exert its outstanding performance and contribute powerful momentum to promoting the high-quality development of industrial manufacturing.

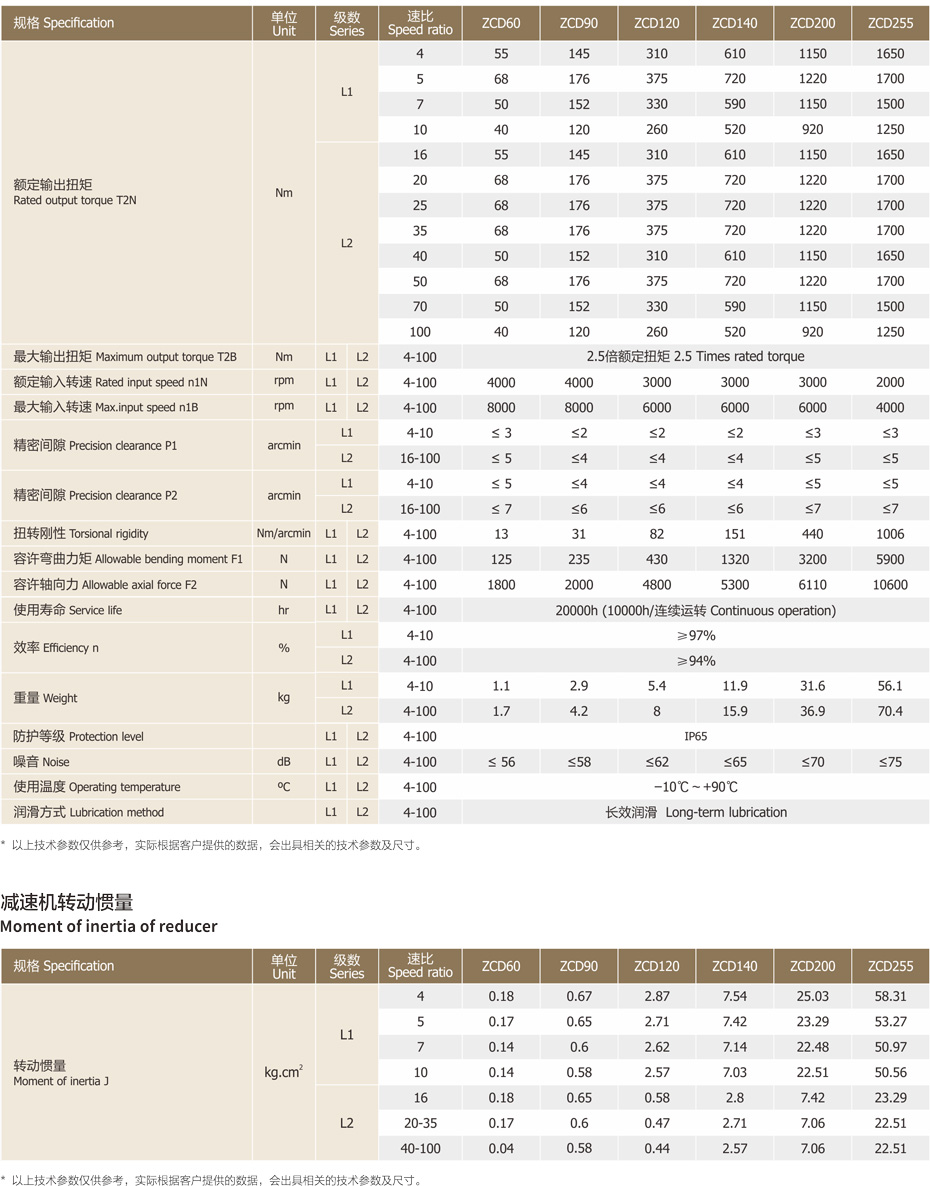

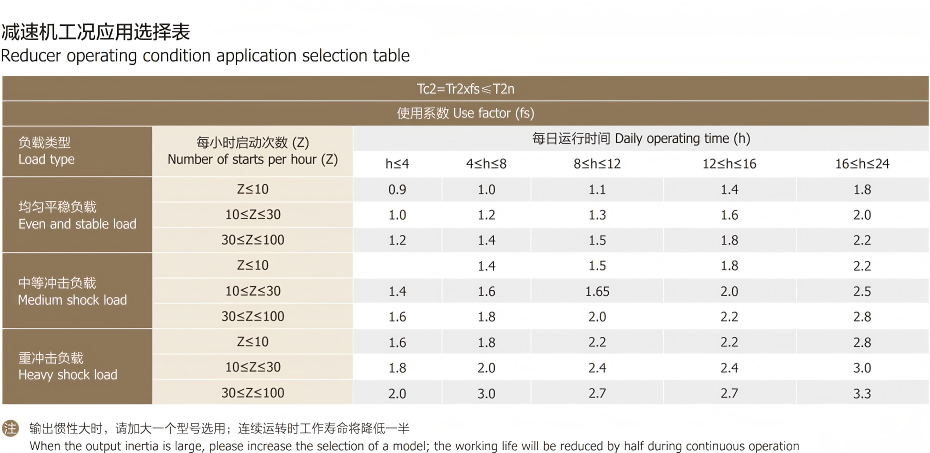

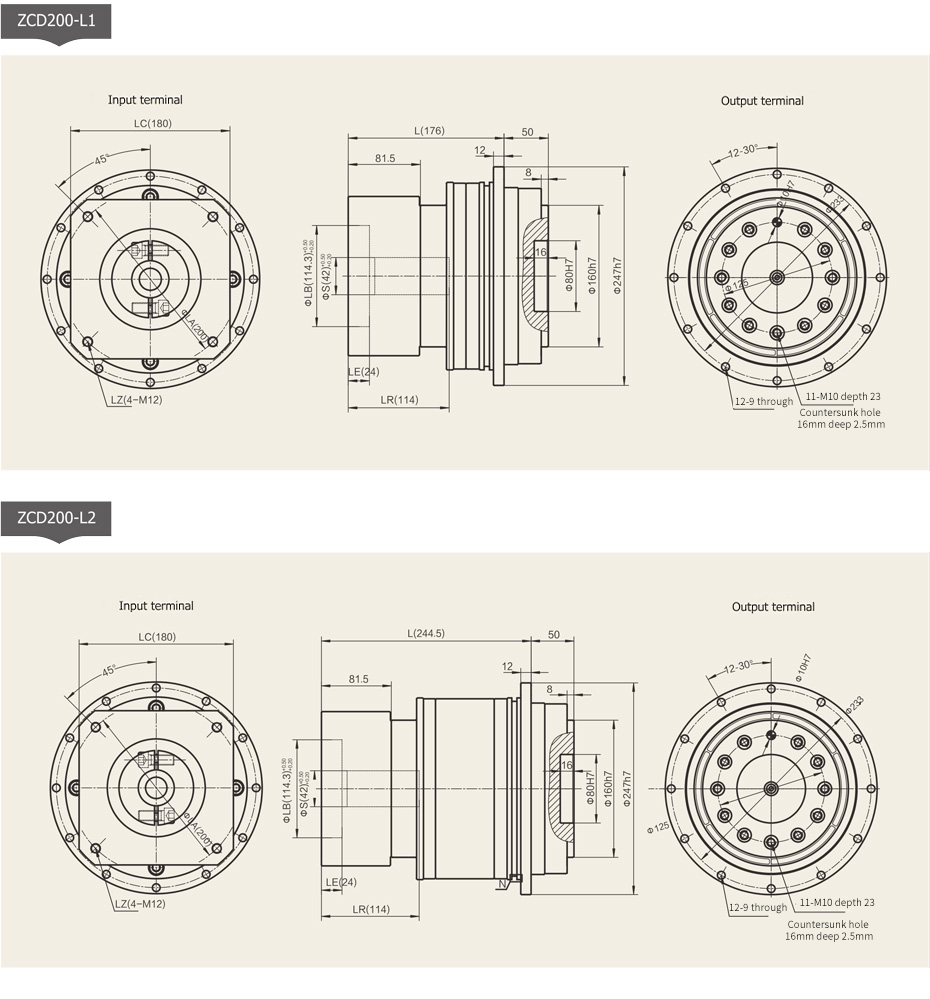

Product Parameter
Send Inquiry
Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.
