Integrated Right Angle Hollow Rotary Platform
Product Model: ZBTR85
Bearing Structure: Crossed Roller Bearing
Reduction Ratio: 10/15/25
Positioning Accuracy: ≤2 arc-min
Send Inquiry
Product Description
In an era of rapid development in automation technology and increasingly stringent requirements for equipment precision and efficiency in industrial production, a transmission component that perfectly integrates multiple functions, adapts to complex working conditions and features high cost performance will undoubtedly become a key driving force for the upgrading of automated equipment. The ZBTR Integrated Right Angle Hollow Rotary Platform is exactly such an outstanding product that combines innovative design and excellent performance. With its unique design concept and remarkable performance, it stands out in the automation field and provides an ideal solution for numerous high-end application scenarios.
The ZBTR Integrated Right Angle Hollow Rotary Platform ingeniously integrates the right angle function with a hollow structure design, an innovative breakthrough in the field of automated equipment design. Its hollow structure endows it with unique advantages, and the central through-hole is cleverly designed to provide a convenient passage for air pipes, cables and other components to run through. In traditional automated equipment, the layout of air pipes and cables often requires additional space and complex routing methods, which not only increases the volume of the equipment but may also lead to problems such as line entanglement and interference, affecting the stability and reliability of the equipment. The hollow structure of the ZBTR Integrated Right Angle Hollow Rotary Platform perfectly solves these problems, allowing air pipes and cables to pass through the central through-hole in a neat and orderly manner, which greatly saves the internal space of the equipment and is especially suitable for automated equipment with multi-axis linkage and compact space. For example, the space at the joint parts of small robots is extremely limited. Using the ZBTR Integrated Right Angle Hollow Rotary Platform can meet the requirements of right angle and rotation functions while providing sufficient space for the layout of air pipes and cables, ensuring the flexible movement and stable operation of the robot.
The platform adopts a perfect combination of a high-precision reduction mechanism and an integrated rigid housing, which is the key to its excellent performance. The high-precision reduction mechanism is elaborately designed and manufactured with strict standards, ensuring extremely high precision and stability of the rotary platform during operation. The integrated rigid housing provides a solid support for the entire system, effectively reducing the impact of external factors on the rotary platform and further improving its positioning accuracy. With this design, the ZBTR Integrated Right Angle Hollow Rotary Platform can achieve a repeat positioning accuracy within ±5 arcsec, a leading level among similar products. Such high repeat positioning accuracy means that the rotary platform can accurately return to the preset position during multiple repeated movements, effectively improving the efficiency of right angle positioning and the response speed of the system. In the field of visual inspection, the requirements for the positioning accuracy of inspection objects are extremely high, and any slight deviation may lead to inaccurate inspection results. The high-precision positioning capability of the ZBTR Integrated Right Angle Hollow Rotary Platform can ensure that the inspection equipment is accurately aligned with the inspection object, improving the accuracy and reliability of inspection and providing a strong guarantee for product quality control.
The ZBTR Integrated Right Angle Hollow Rotary Platform has good compatibility and can be perfectly matched with servo motors of mainstream brands. As the power source of automated equipment, the performance and stability of servo motors directly affect the operation effect of the entire system. The platform supports connection with servo motors of various mainstream brands, providing users with more choices. At the same time, it also supports precise indexing at any angle and continuous rotation, a feature that enables it to meet the diversified needs of different application scenarios. In the field of precision assembly, precise angular positioning and assembly of components are required. The ZBTR Integrated Right Angle Hollow Rotary Platform can achieve precise indexing at any angle according to the requirements of the assembly process, ensuring the accurate assembly of components and improving assembly quality and efficiency. In multi-station turntable machines, continuous rotation of the turntable and precise positioning of each station are required. The continuous rotation and precise indexing functions of the platform can perfectly meet this demand, realizing efficient collaborative work of multiple stations and improving the overall production capacity of the production line.
The ZBTR series has further optimized structural compactness and installation convenience on the original basis. In terms of structural compactness, through the optimized layout and design of internal components, the volume of the rotary platform is further reduced on the premise of ensuring performance, making it better adapt to automated equipment with limited space. In terms of installation convenience, the series adopts a standardized interface design and easy-to-understand installation instructions, allowing users to quickly and easily complete the installation and commissioning of the rotary platform, greatly shortening the equipment installation cycle and reducing installation costs. For example, on some production lines that require rapid equipment replacement, using the ZBTR Integrated Right Angle Hollow Rotary Platform can quickly complete equipment installation and commissioning, reduce equipment downtime and improve production efficiency. At the same time, its convenient installation method also reduces the technical requirements for installation personnel and cuts labor costs.
With its innovative design, excellent performance, wide compatibility and optimized convenience, the ZBTR Integrated Right Angle Hollow Rotary Platform has become an ideal choice in the automation field. It can not only meet the strict requirements for precision and efficiency in high-end automation scenarios, but also help users save costs and improve production efficiency. With the continuous development of automation technology, the ZBTR Integrated Right Angle Hollow Rotary Platform will surely play an important role in more industries and drive automated equipment to a higher level.
The platform adopts a perfect combination of a high-precision reduction mechanism and an integrated rigid housing, which is the key to its excellent performance. The high-precision reduction mechanism is elaborately designed and manufactured with strict standards, ensuring extremely high precision and stability of the rotary platform during operation. The integrated rigid housing provides a solid support for the entire system, effectively reducing the impact of external factors on the rotary platform and further improving its positioning accuracy. With this design, the ZBTR Integrated Right Angle Hollow Rotary Platform can achieve a repeat positioning accuracy within ±5 arcsec, a leading level among similar products. Such high repeat positioning accuracy means that the rotary platform can accurately return to the preset position during multiple repeated movements, effectively improving the efficiency of right angle positioning and the response speed of the system. In the field of visual inspection, the requirements for the positioning accuracy of inspection objects are extremely high, and any slight deviation may lead to inaccurate inspection results. The high-precision positioning capability of the ZBTR Integrated Right Angle Hollow Rotary Platform can ensure that the inspection equipment is accurately aligned with the inspection object, improving the accuracy and reliability of inspection and providing a strong guarantee for product quality control.
The ZBTR Integrated Right Angle Hollow Rotary Platform has good compatibility and can be perfectly matched with servo motors of mainstream brands. As the power source of automated equipment, the performance and stability of servo motors directly affect the operation effect of the entire system. The platform supports connection with servo motors of various mainstream brands, providing users with more choices. At the same time, it also supports precise indexing at any angle and continuous rotation, a feature that enables it to meet the diversified needs of different application scenarios. In the field of precision assembly, precise angular positioning and assembly of components are required. The ZBTR Integrated Right Angle Hollow Rotary Platform can achieve precise indexing at any angle according to the requirements of the assembly process, ensuring the accurate assembly of components and improving assembly quality and efficiency. In multi-station turntable machines, continuous rotation of the turntable and precise positioning of each station are required. The continuous rotation and precise indexing functions of the platform can perfectly meet this demand, realizing efficient collaborative work of multiple stations and improving the overall production capacity of the production line.
The ZBTR series has further optimized structural compactness and installation convenience on the original basis. In terms of structural compactness, through the optimized layout and design of internal components, the volume of the rotary platform is further reduced on the premise of ensuring performance, making it better adapt to automated equipment with limited space. In terms of installation convenience, the series adopts a standardized interface design and easy-to-understand installation instructions, allowing users to quickly and easily complete the installation and commissioning of the rotary platform, greatly shortening the equipment installation cycle and reducing installation costs. For example, on some production lines that require rapid equipment replacement, using the ZBTR Integrated Right Angle Hollow Rotary Platform can quickly complete equipment installation and commissioning, reduce equipment downtime and improve production efficiency. At the same time, its convenient installation method also reduces the technical requirements for installation personnel and cuts labor costs.
With its innovative design, excellent performance, wide compatibility and optimized convenience, the ZBTR Integrated Right Angle Hollow Rotary Platform has become an ideal choice in the automation field. It can not only meet the strict requirements for precision and efficiency in high-end automation scenarios, but also help users save costs and improve production efficiency. With the continuous development of automation technology, the ZBTR Integrated Right Angle Hollow Rotary Platform will surely play an important role in more industries and drive automated equipment to a higher level.

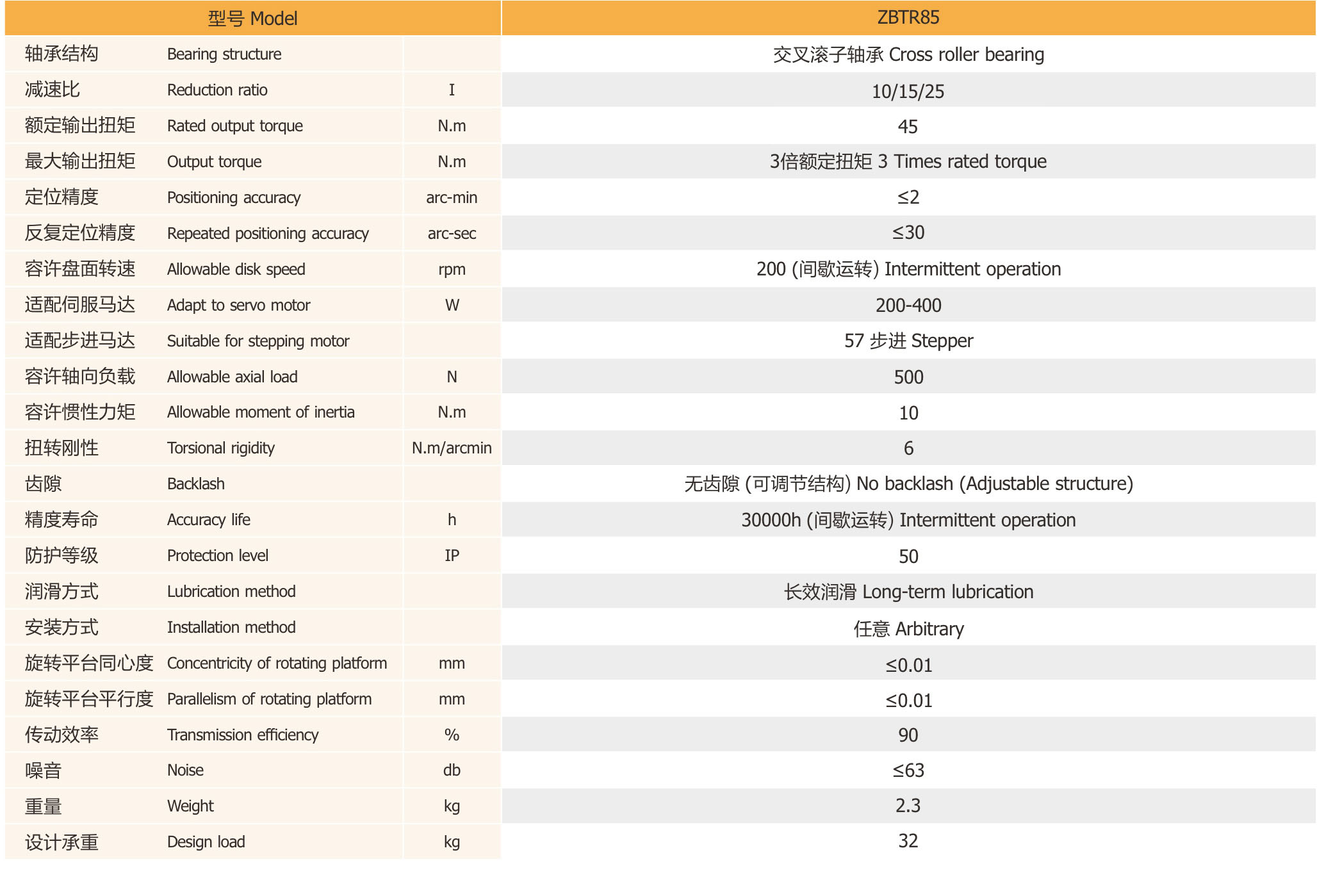

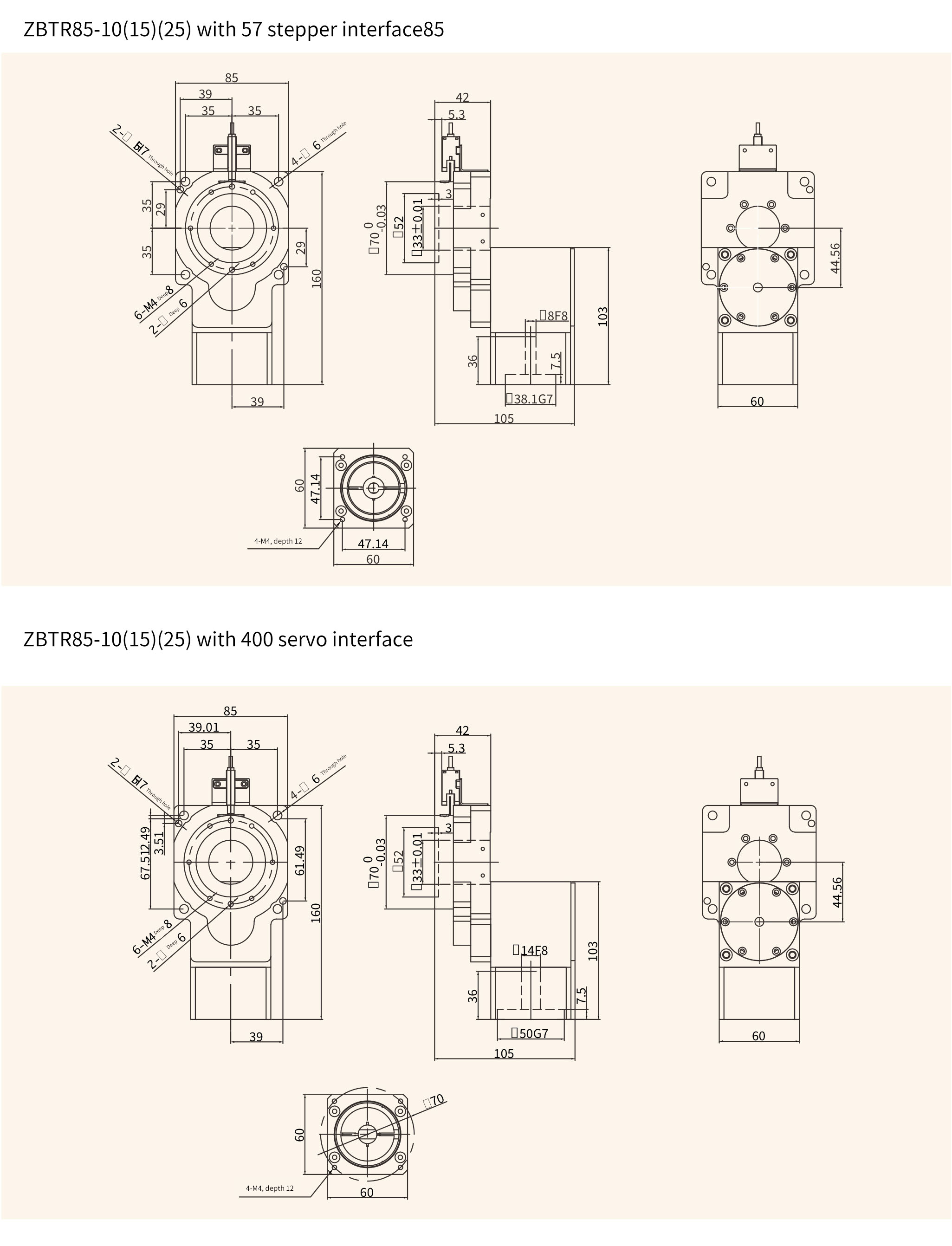

Product Parameter
Send Inquiry
Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.
