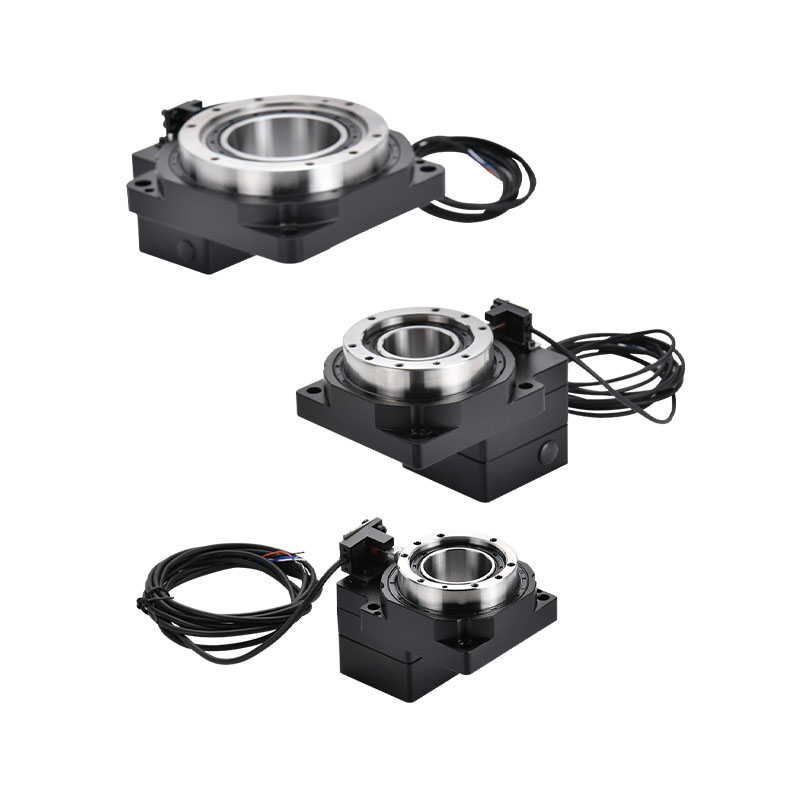

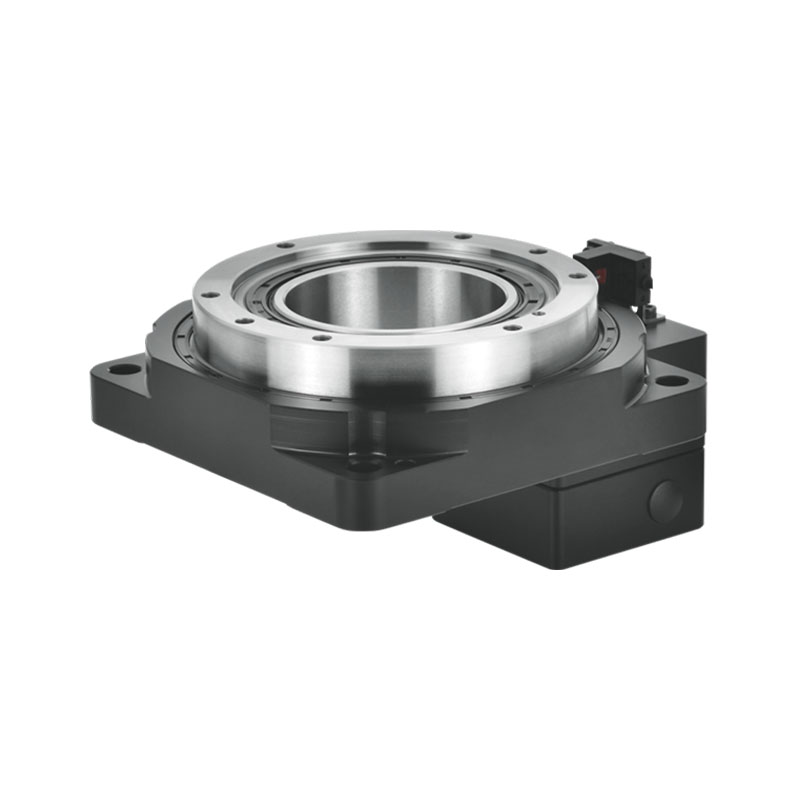

400w Servo Motor Hollow Rotary Platform
Product Model: ZBT-130
Bearing Structure: Crossed Roller Bearing
Reduction Ratio: 10/18
Positioning Accuracy: ≤0.5 arc-min
Send Inquiry
Product Description
In today's rapidly evolving landscape of automation and precision manufacturing, the demands for power transmission, rotational positioning, and space utilization in various types of equipment are becoming increasingly stringent. The Zhuochuang Elite ZBT Series Aluminum Shell Hollow Rotary Platform stands out with its unique design and superior performance. When combined with a specific power source, it can unleash tremendous potential. The configuration of a "400W Servo Motor Hollow Rotary Platform " has become an ideal choice for numerous complex application scenarios, providing solid assurance for the stable operation and efficient performance of equipment.
The large-aperture design of the Zhuochuang Elite ZBT Series Aluminum Shell Hollow Rotary Platform demonstrates exceptional advantages in the combined application with the 400W servo motor. In the modern era of increasingly complex automated equipment, the rational layout of internal wiring is crucial. It not only affects the normal operation of the equipment but also influences its overall aesthetics and maintainability. The large aperture of the 400W Servo Motor Hollow Rotary Platform acts like a spacious "cable conduit," providing ample passage for various types of cables.
Taking a large CNC machining center as an example, this equipment requires the connection of numerous sensor lines, control cables, and power lines to achieve precise control of cutting tools, accurate machining of workpieces, and real-time monitoring of the equipment. When using the 400W Servo Motor Hollow Rotary Platform , these lines can pass unobstructed through the center hole of the hollow rotary platform for routing. Compared to traditional wiring methods, this design significantly reduces cable entanglement and interference, lowering the equipment failure rate caused by wiring issues. Simultaneously, neat and orderly wiring results in a clearer internal structure, facilitating technicians' daily maintenance and inspection tasks. This effectively enhances the equipment's integration convenience and space utilization, allowing the equipment to deliver greater performance within a limited space.
The 400W Servo Motor Hollow Rotary Platform allows loads to be mounted directly onto the output disc surface of the hollow rotary platform and achieve rotational positioning at any angle. This characteristic brings unprecedented flexibility to numerous application scenarios. The servo motor offers high precision, high response speed, and excellent dynamic performance, while the hollow rotary platform provides stable rotational support and precise positioning function—the two complement each other perfectly.
In the field of robotic joints, this advantage of the 400W Servo Motor Hollow Rotary Platform is fully demonstrated. Robotic joints need to rotate flexibly at different angles to perform various complex movements. Mounting the load directly onto the output disc makes the robot's motion more direct and efficient. For instance, in the welding operations of industrial robots, the 400W Servo Motor Hollow Rotary Platform can drive the welding torch to rotate and position precisely at any angle, ensuring accurate welding points, thereby greatly improving welding quality and efficiency. Meanwhile, the high response speed of the servo motor enables the robot to quickly adapt to different welding tasks, meeting the demands of modern production for high efficiency and precision.
In the medical equipment field, the 400W Servo Motor Hollow Rotary Platform also plays a significant role. For example, the rotating gantry in CT scanning equipment needs to rotate patients or detection components through multiple angles to obtain comprehensive scan images. Using the 400W Servo Motor Hollow Rotary Platform , the detection component can be securely mounted on the output disc. Through the precise control of the servo motor, the stable and accurate rotation of the gantry is achieved, providing doctors with accurate and clear diagnostic data and contributing to the advancement of medical science.
The compatibility between the 400W servo motor and the Zhuochuang Elite ZBT Series Aluminum Shell Hollow Rotary Platform is near perfect. The 400W power rating provides sufficient power for the hollow rotary platform, meeting the rotational demands of most automated equipment and precision machinery. Simultaneously, the closed-loop control system of the servo motor can monitor and adjust the rotational speed, position, and torque of the rotary platform in real time, ensuring the stability and accuracy of the rotation process.
In printing equipment, printing cylinders require precise rotation and positioning to ensure the clarity and accuracy of printed patterns. The 400W Servo Motor Hollow Rotary Platform can provide stable and precise power support for the printing cylinder. The servo motor can precisely control the rotational speed and angle of the rotary platform according to the printing task requirements, enabling high-speed, high-precision printing operations. Concurrently, the large-aperture design of the hollow rotary platform facilitates the internal wiring layout of the printing equipment, improving its overall performance and reliability.
In the field of packaging equipment, the 400W Servo Motor Hollow Rotary Platform also performs excellently. For instance, in the capping process for bottled products, caps need to be accurately screwed onto bottle mouths. Using the 400W Servo Motor Hollow Rotary Platform allows precise control of the torque and angle of the rotary platform, ensuring the cap is tightened with appropriate force—neither too strong to damage the bottle mouth nor too weak to cause a loose cap. Furthermore, the high-speed response capability of the servo motor meets the demands of large-scale production, improving packaging efficiency.
The Zhuochuang Elite ZBT Series utilizes high-quality aluminum alloy material for its housing. This design provides reliable protection for the stable operation of the 400W Servo Motor Hollow Rotary Platform . Aluminum alloy offers advantages such as light weight, high strength, and corrosion resistance, ensuring the structural robustness of the hollow rotary platform while reducing its own weight for easier installation and handling.
In harsh industrial environments, equipment is often subjected to various factors such as vibration, impact, and humidity. The aluminum housing design of the 400W Servo Motor Hollow Rotary Platform effectively resists these external disturbances, protecting the internal precision transmission components and the servo motor from damage. For example, in mining machinery, equipment needs to operate in environments with high dust levels and strong vibrations. The aluminum housing of the 400W Servo Motor Hollow Rotary Platform can prevent dust from entering the interior and reduce the impact of vibration on equipment performance, ensuring long-term stable operation. Additionally, the aluminum housing offers good heat dissipation, effectively dissipating heat generated during operation, ensuring the equipment works at suitable temperatures, and extending its service life.
With its numerous advantages—including convenient large-aperture wiring, precise direct-load mounting and positioning, perfect integration with compatible power sources, and reliable protection from the sturdy aluminum housing—the 400W Servo Motor Hollow Rotary Platform has become a core component in the fields of automated equipment and precision machinery, injecting powerful momentum into the industry's technological progress and innovative development.
The large-aperture design of the Zhuochuang Elite ZBT Series Aluminum Shell Hollow Rotary Platform demonstrates exceptional advantages in the combined application with the 400W servo motor. In the modern era of increasingly complex automated equipment, the rational layout of internal wiring is crucial. It not only affects the normal operation of the equipment but also influences its overall aesthetics and maintainability. The large aperture of the 400W Servo Motor Hollow Rotary Platform acts like a spacious "cable conduit," providing ample passage for various types of cables.
The 400W Servo Motor Hollow Rotary Platform allows loads to be mounted directly onto the output disc surface of the hollow rotary platform and achieve rotational positioning at any angle. This characteristic brings unprecedented flexibility to numerous application scenarios. The servo motor offers high precision, high response speed, and excellent dynamic performance, while the hollow rotary platform provides stable rotational support and precise positioning function—the two complement each other perfectly.
In the field of robotic joints, this advantage of the 400W Servo Motor Hollow Rotary Platform is fully demonstrated. Robotic joints need to rotate flexibly at different angles to perform various complex movements. Mounting the load directly onto the output disc makes the robot's motion more direct and efficient. For instance, in the welding operations of industrial robots, the 400W Servo Motor Hollow Rotary Platform can drive the welding torch to rotate and position precisely at any angle, ensuring accurate welding points, thereby greatly improving welding quality and efficiency. Meanwhile, the high response speed of the servo motor enables the robot to quickly adapt to different welding tasks, meeting the demands of modern production for high efficiency and precision.
In the medical equipment field, the 400W Servo Motor Hollow Rotary Platform also plays a significant role. For example, the rotating gantry in CT scanning equipment needs to rotate patients or detection components through multiple angles to obtain comprehensive scan images. Using the 400W Servo Motor Hollow Rotary Platform , the detection component can be securely mounted on the output disc. Through the precise control of the servo motor, the stable and accurate rotation of the gantry is achieved, providing doctors with accurate and clear diagnostic data and contributing to the advancement of medical science.
The compatibility between the 400W servo motor and the Zhuochuang Elite ZBT Series Aluminum Shell Hollow Rotary Platform is near perfect. The 400W power rating provides sufficient power for the hollow rotary platform, meeting the rotational demands of most automated equipment and precision machinery. Simultaneously, the closed-loop control system of the servo motor can monitor and adjust the rotational speed, position, and torque of the rotary platform in real time, ensuring the stability and accuracy of the rotation process.
In printing equipment, printing cylinders require precise rotation and positioning to ensure the clarity and accuracy of printed patterns. The 400W Servo Motor Hollow Rotary Platform can provide stable and precise power support for the printing cylinder. The servo motor can precisely control the rotational speed and angle of the rotary platform according to the printing task requirements, enabling high-speed, high-precision printing operations. Concurrently, the large-aperture design of the hollow rotary platform facilitates the internal wiring layout of the printing equipment, improving its overall performance and reliability.
In the field of packaging equipment, the 400W Servo Motor Hollow Rotary Platform also performs excellently. For instance, in the capping process for bottled products, caps need to be accurately screwed onto bottle mouths. Using the 400W Servo Motor Hollow Rotary Platform allows precise control of the torque and angle of the rotary platform, ensuring the cap is tightened with appropriate force—neither too strong to damage the bottle mouth nor too weak to cause a loose cap. Furthermore, the high-speed response capability of the servo motor meets the demands of large-scale production, improving packaging efficiency.
The Zhuochuang Elite ZBT Series utilizes high-quality aluminum alloy material for its housing. This design provides reliable protection for the stable operation of the 400W Servo Motor Hollow Rotary Platform . Aluminum alloy offers advantages such as light weight, high strength, and corrosion resistance, ensuring the structural robustness of the hollow rotary platform while reducing its own weight for easier installation and handling.
In harsh industrial environments, equipment is often subjected to various factors such as vibration, impact, and humidity. The aluminum housing design of the 400W Servo Motor Hollow Rotary Platform effectively resists these external disturbances, protecting the internal precision transmission components and the servo motor from damage. For example, in mining machinery, equipment needs to operate in environments with high dust levels and strong vibrations. The aluminum housing of the 400W Servo Motor Hollow Rotary Platform can prevent dust from entering the interior and reduce the impact of vibration on equipment performance, ensuring long-term stable operation. Additionally, the aluminum housing offers good heat dissipation, effectively dissipating heat generated during operation, ensuring the equipment works at suitable temperatures, and extending its service life.
With its numerous advantages—including convenient large-aperture wiring, precise direct-load mounting and positioning, perfect integration with compatible power sources, and reliable protection from the sturdy aluminum housing—the 400W Servo Motor Hollow Rotary Platform has become a core component in the fields of automated equipment and precision machinery, injecting powerful momentum into the industry's technological progress and innovative development.

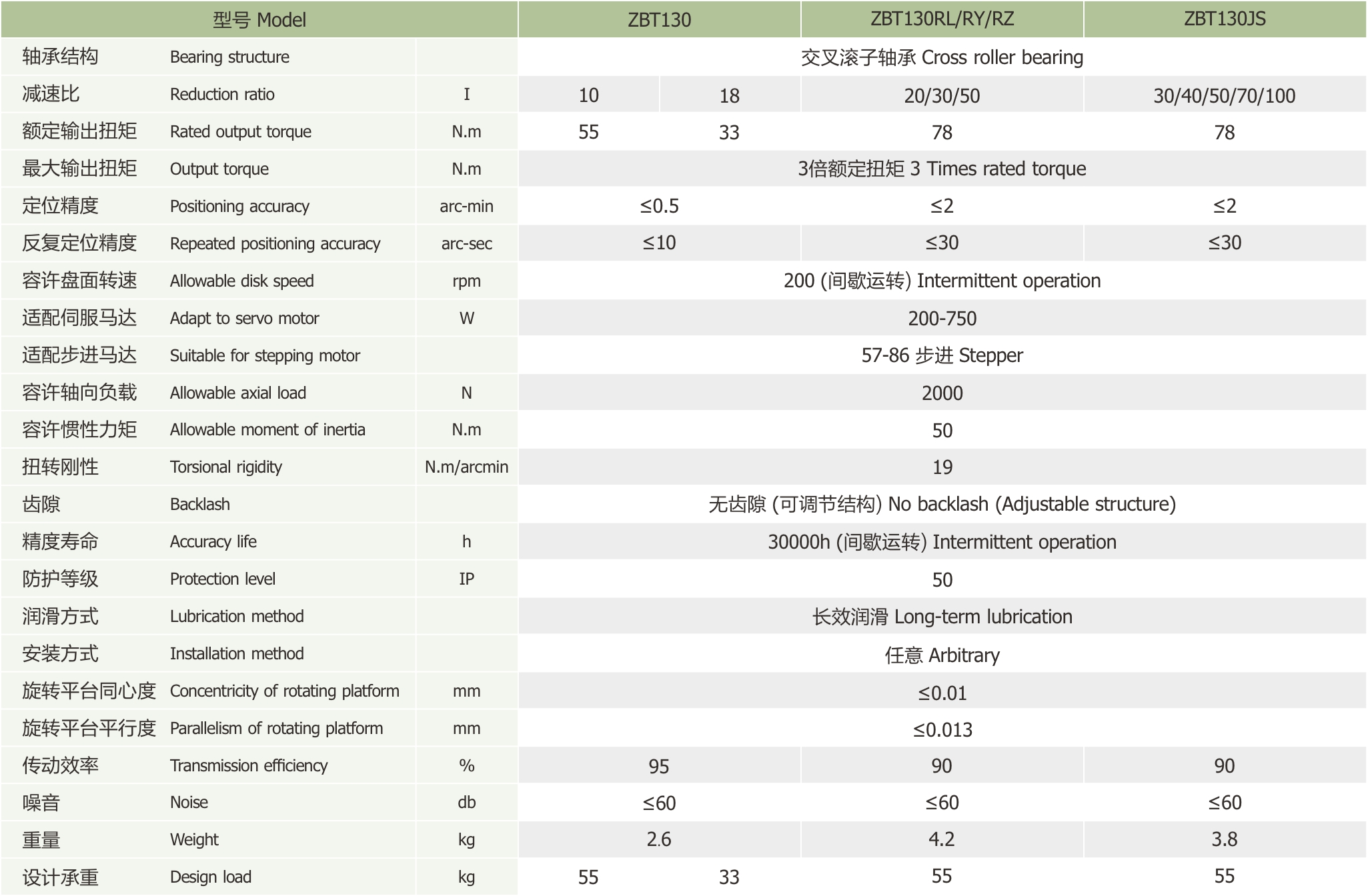

Product Parameter
