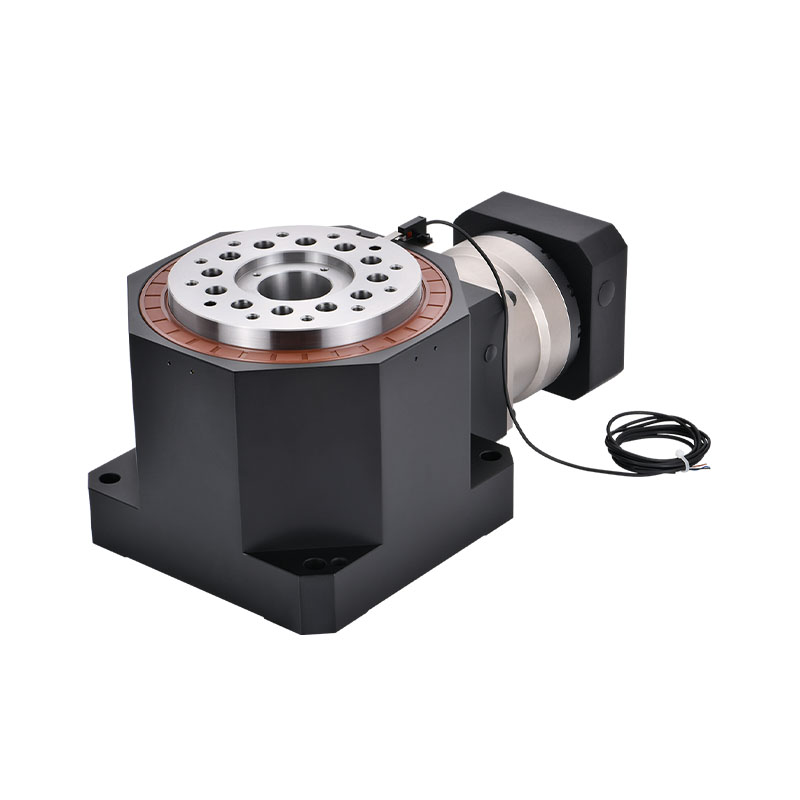

Multi Station Hollow Rotary Platform Gearbox
Bearing structure: Crossed roller bearing
Reduction ratio: 15/21/30/60/75/105/120/150/210/300
Positioning accuracy: ≤1 arc-min
Repeatability: ≤30 arc-sec
Send Inquiry

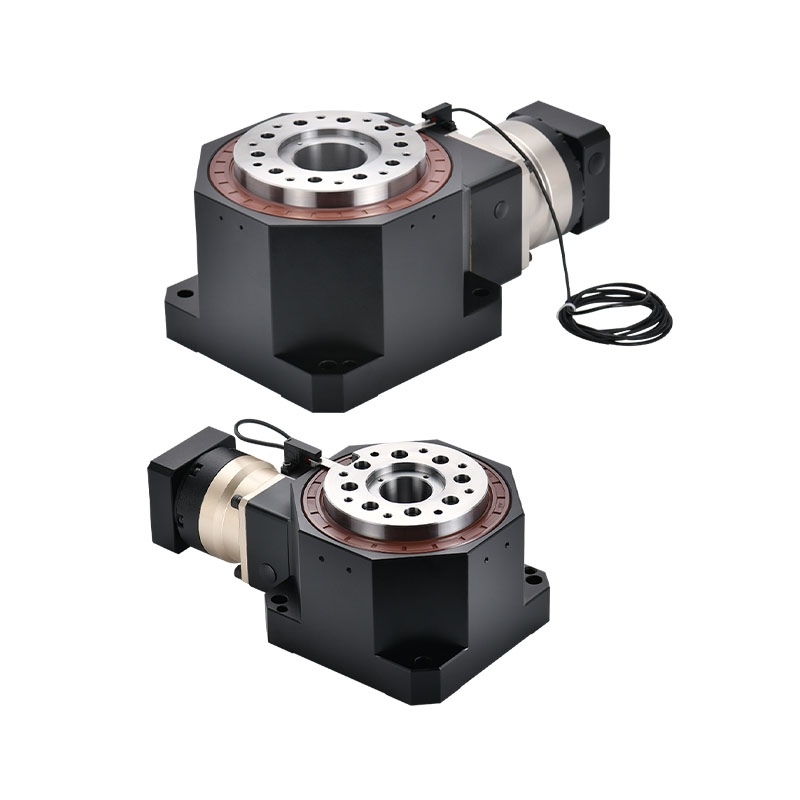

Product Description
As automated production continues to advance toward higher precision, higher efficiency and multi-functionality, various types of automation equipment are imposing increasingly stringent requirements on core transmission components. The ZCM Right Angle Hollow Rotary Platform stands out from numerous transmission products with its unique design and excellent performance. In particular, its outstanding performance as a Multi Station Hollow Rotary Platform Gearbox has brought a brand-new solution for multi-station automated operations.
The ZCM Right Angle Hollow Rotary Platform adopts an internal spiral bevel gear structure design, which is a brilliant innovation for precision transmission. The special tooth profile of the spiral bevel gear enables a larger and more evenly distributed contact area during gear meshing. Compared with traditional gears, it greatly improves meshing accuracy and effectively reduces errors and vibration during transmission. This advantage is even more significant during high-speed operation, as it ensures the smoothness of equipment operation, keeps noise at an extremely low level, and creates a quiet and comfortable working environment for operators.
Take the application of the Multi Station Hollow Rotary Platform Gearbox in precision machining equipment as an example. When machining operations are carried out at multiple stations simultaneously, the rotation accuracy of each station is critical. The spiral bevel gear structure of the ZCM Right Angle Hollow Rotary Platform can ensure accurate angular positioning and smooth, impact-free transmission for each station during rotation, thereby guaranteeing high dimensional accuracy and stable quality of the machined products, and greatly improving the product qualification rate.
The output end of the platform is equipped with a high-rigidity rotating shaft, a design that provides a strong guarantee for the stable operation of the Multi Station Hollow Rotary Platform Gearbox under complex working conditions. The high-rigidity rotating shaft has excellent torsion resistance, and can withstand large torque without obvious deformation. This feature is particularly important in hoisting scenarios and working conditions with large overturning force.
In large-scale multi-station hoisting equipment, the Multi Station Hollow Rotary Platform Gearbox needs to simultaneously control the rotation of multiple hoisting stations. When hoisting heavy objects, a huge overturning moment will be generated. If the rigidity of the rotating shaft is insufficient, it will cause the rotary platform to shake or even be damaged, which seriously affects the safety and efficiency of hoisting operations. The high-rigidity rotating shaft of the ZCM Right Angle Hollow Rotary Platform can effectively resist the overturning moment, maintain the balance and stability of the equipment, and ensure the smooth progress of hoisting operations.
As a Multi Station Hollow Rotary Platform Gearbox , the ZCM Right Angle Hollow Rotary Platform has excellent compatibility and can be perfectly matched with mainstream servo motors or stepper motors. Servo motors feature high precision and fast response speed, enabling precise control of the rotary platform; while stepper motors have the advantages of low cost and simple control, making them suitable for multi-station application scenarios with relatively low precision requirements but strict cost control.
Through coordinated operation with different types of motors, the Multi Station Hollow Rotary Platform Gearbox can achieve high-precision angular positioning and continuous rotary motion. In space-constrained precision indexing mechanisms, such as small multi-station robot joints, it is necessary to accurately control the rotation angle of each station to complete complex motion tasks. The ZCM Right Angle Hollow Rotary Platform, when matched with a servo motor, can achieve angular positioning with extremely high accuracy, ensure error-free movement of robot joints, and improve the operational flexibility and precision of the robot.
In the field of semiconductor handling, the Multi Station Hollow Rotary Platform Gearbox needs to simultaneously control the rotation and positioning of multiple handling stations to realize fast and accurate handling of semiconductor chips. The combination of a stepper motor and this platform can meet the needs of scenarios where the handling speed requirement is not extremely high but cost is a sensitive factor. In high-end semiconductor production lines with extremely high requirements for handling accuracy and speed, the combination of a servo motor and the Multi Station Hollow Rotary Platform Gearbox can deliver optimal performance, ensuring that semiconductor chips are not damaged during handling, and improving production efficiency and product yield.
Due to its excellent performance and wide motor compatibility, the ZCM Right Angle Hollow Rotary Platform, as a Multi Station Hollow Rotary Platform Gearbox , has been widely used in many automation equipment. In addition to the above-mentioned space-constrained precision indexing mechanisms and semiconductor handling field, it also plays an important role in optical alignment systems.
In optical alignment systems, it is often necessary to perform precise angle adjustment and positioning on multiple optical components at the same time to achieve the best optical performance. The Multi Station Hollow Rotary Platform Gearbox can quickly and accurately control the rotation of each station, enabling optical components to be rapidly adjusted to the optimal position, and improving the imaging quality and stability of the optical system. In multi-station optical inspection equipment, this platform can inspect multiple samples at the same time, greatly improving inspection efficiency.
In addition, in multi-station automation equipment such as packaging machinery and food processing machinery, the ZCM Right Angle Hollow Rotary Platform Gearbox can also realize precise rotation and positioning of each station according to different process requirements, improving the automation level and production efficiency of the production process.
As a Multi Station Hollow Rotary Platform Gearbox , the ZCM Right Angle Hollow Rotary Platform has become an ideal choice for multi-station automated operations with its exquisite gear design, high-rigidity rotating shaft, wide motor compatibility and extensive applications across multiple fields. In the future industrial development, it will continue to play an important role, promote the advancement of automation technology to a higher level, and provide strong support for production upgrading and efficiency improvement in various industries.
The ZCM Right Angle Hollow Rotary Platform adopts an internal spiral bevel gear structure design, which is a brilliant innovation for precision transmission. The special tooth profile of the spiral bevel gear enables a larger and more evenly distributed contact area during gear meshing. Compared with traditional gears, it greatly improves meshing accuracy and effectively reduces errors and vibration during transmission. This advantage is even more significant during high-speed operation, as it ensures the smoothness of equipment operation, keeps noise at an extremely low level, and creates a quiet and comfortable working environment for operators.
The output end of the platform is equipped with a high-rigidity rotating shaft, a design that provides a strong guarantee for the stable operation of the Multi Station Hollow Rotary Platform Gearbox under complex working conditions. The high-rigidity rotating shaft has excellent torsion resistance, and can withstand large torque without obvious deformation. This feature is particularly important in hoisting scenarios and working conditions with large overturning force.
In large-scale multi-station hoisting equipment, the Multi Station Hollow Rotary Platform Gearbox needs to simultaneously control the rotation of multiple hoisting stations. When hoisting heavy objects, a huge overturning moment will be generated. If the rigidity of the rotating shaft is insufficient, it will cause the rotary platform to shake or even be damaged, which seriously affects the safety and efficiency of hoisting operations. The high-rigidity rotating shaft of the ZCM Right Angle Hollow Rotary Platform can effectively resist the overturning moment, maintain the balance and stability of the equipment, and ensure the smooth progress of hoisting operations.
As a Multi Station Hollow Rotary Platform Gearbox , the ZCM Right Angle Hollow Rotary Platform has excellent compatibility and can be perfectly matched with mainstream servo motors or stepper motors. Servo motors feature high precision and fast response speed, enabling precise control of the rotary platform; while stepper motors have the advantages of low cost and simple control, making them suitable for multi-station application scenarios with relatively low precision requirements but strict cost control.
Through coordinated operation with different types of motors, the Multi Station Hollow Rotary Platform Gearbox can achieve high-precision angular positioning and continuous rotary motion. In space-constrained precision indexing mechanisms, such as small multi-station robot joints, it is necessary to accurately control the rotation angle of each station to complete complex motion tasks. The ZCM Right Angle Hollow Rotary Platform, when matched with a servo motor, can achieve angular positioning with extremely high accuracy, ensure error-free movement of robot joints, and improve the operational flexibility and precision of the robot.
In the field of semiconductor handling, the Multi Station Hollow Rotary Platform Gearbox needs to simultaneously control the rotation and positioning of multiple handling stations to realize fast and accurate handling of semiconductor chips. The combination of a stepper motor and this platform can meet the needs of scenarios where the handling speed requirement is not extremely high but cost is a sensitive factor. In high-end semiconductor production lines with extremely high requirements for handling accuracy and speed, the combination of a servo motor and the Multi Station Hollow Rotary Platform Gearbox can deliver optimal performance, ensuring that semiconductor chips are not damaged during handling, and improving production efficiency and product yield.
Due to its excellent performance and wide motor compatibility, the ZCM Right Angle Hollow Rotary Platform, as a Multi Station Hollow Rotary Platform Gearbox , has been widely used in many automation equipment. In addition to the above-mentioned space-constrained precision indexing mechanisms and semiconductor handling field, it also plays an important role in optical alignment systems.
In optical alignment systems, it is often necessary to perform precise angle adjustment and positioning on multiple optical components at the same time to achieve the best optical performance. The Multi Station Hollow Rotary Platform Gearbox can quickly and accurately control the rotation of each station, enabling optical components to be rapidly adjusted to the optimal position, and improving the imaging quality and stability of the optical system. In multi-station optical inspection equipment, this platform can inspect multiple samples at the same time, greatly improving inspection efficiency.
In addition, in multi-station automation equipment such as packaging machinery and food processing machinery, the ZCM Right Angle Hollow Rotary Platform Gearbox can also realize precise rotation and positioning of each station according to different process requirements, improving the automation level and production efficiency of the production process.
As a Multi Station Hollow Rotary Platform Gearbox , the ZCM Right Angle Hollow Rotary Platform has become an ideal choice for multi-station automated operations with its exquisite gear design, high-rigidity rotating shaft, wide motor compatibility and extensive applications across multiple fields. In the future industrial development, it will continue to play an important role, promote the advancement of automation technology to a higher level, and provide strong support for production upgrading and efficiency improvement in various industries.

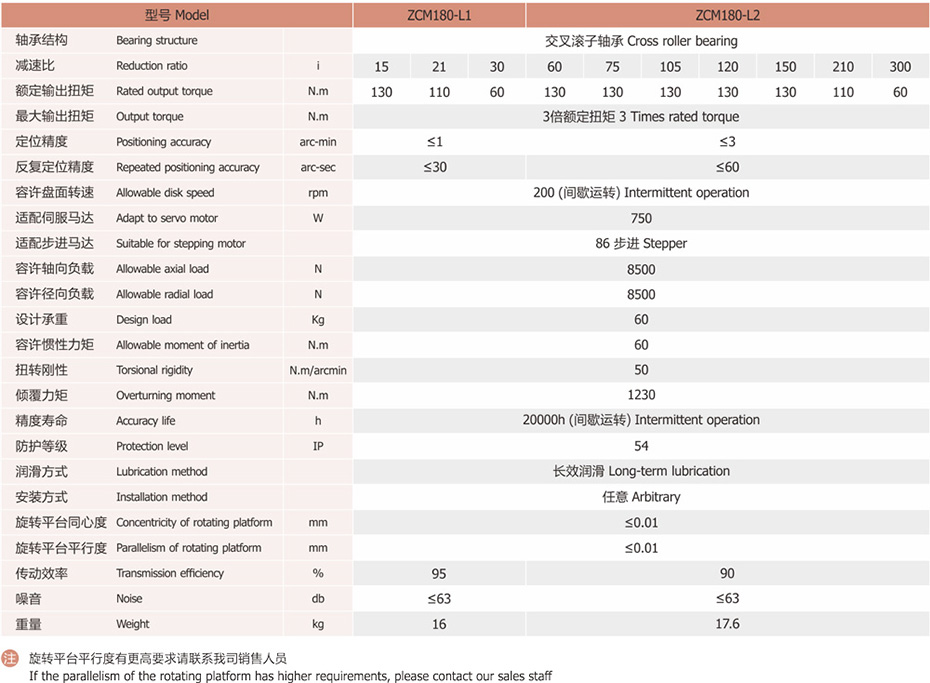

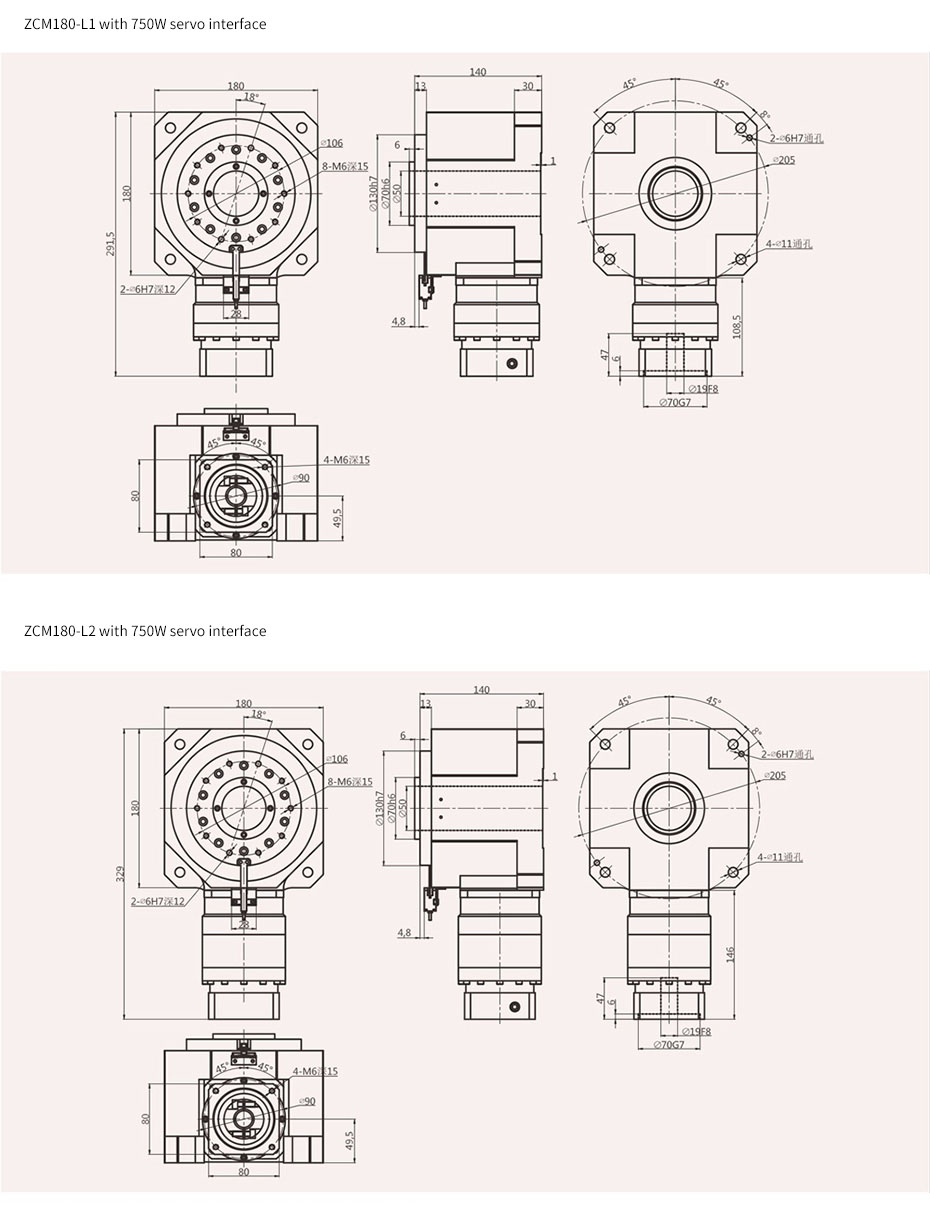

Product Parameter
